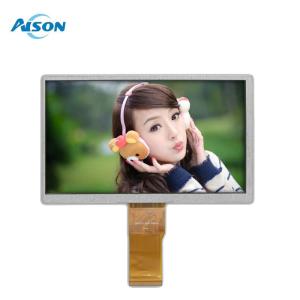

7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface

Name: 70 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface
Brand: AISON
Price: 1 USD

Wholesale 7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface from china suppliers

Brand Name : AISON

Model Number : Z070WS03

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable based on quantity

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 200k/month

Delivery Time : 7 working days

Packaging Details : Carton/Blister Package

Name : TFT LCD Display

Resolution : 1024X600

Outline dimension : 164.9*100*3.5mm

Active area : 154.21 x 85.92mm

Interface : RGB

Brightness : 400 cd/m2

LCD Type : TFT, Normally White, Transmissive

Contrast Ratio : 800:1

Operating temperatures : -20℃ To +70℃

Storage temperatures : -30℃ To +80℃

Contact Now

7.0 inch 1024X600 TFT LCD Module, TN Display RGB Interface 50 Pin

General Description

This 7.0-inch TFT LCD with a TN display, featuring a resolution of 1024x600 pixels and an RGB interface. This display offers reliable performance and clear visuals, making it suitable for a wide range of applications.

The display features an aspect ratio of 16:9. The power voltage (DVDD) ranges from 3.0V to 3.6V, with a typical value of 3.3V. It includes an anti-glare surface panel, with an viewing direction 75/70/75/75. The brightness ranges from 400 nits to 450 nits.

This 7 inch TFT Displays Operating temperatures range from -20°C to +70°C, with storage temperatures from -30°C to +80°C. This TFT display model is suitable for various industrial control product applications.

It is designed to be versatile and easy to integrate into various devices and systems. Its compact size and lightweight construction make it ideal for portable devices, automotive displays, home appliances, and more.

We also can offer the option of a custom solution with either a capacitive or resistive touchscreen.

General Data

Model Name	7 inch 1024x620 TFT Display
Resolution	1024x600 mm
Model Size (WHT)	164.91003.5 mm
Display Area (W*H)	154.21 x 85.92
Interface	RGB
Display Mode	Normally White,Transmissive
Viewing	12 o'clock
Brightness	400 cd/m2
Pin number	50 pin
Contrast Ratio	800:1
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing

7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface

Product Details

7.0 Inch TFT LCD Display 1024X600 TFT Touch Screen Module 50 Pin RGB Interface

TFT Applications:

This 7 inch TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.
