5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface

Product Categories
Aison Technology (HK) Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface

Brand Name : AISON

Model Number : Z050YMM-J40-68P0

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 100k/month

Delivery Time : 7 working days

Packaging Details : Blister Package/Carton

Name : 5 inch Round TFT Display

Resolution : 1080x1080

Outline dimension : 136.531*132.208*1.98mm

Active area : 127.008 (H) *127.008 (V)mm

Interface : MIPI

Viewing angle : 80/80/80/80

Brightness : 350cd/m2

Operating temperatures : -20 to 70 degree

Contact Now

5 inch BOE Round TFT Display1080X1080 with MIPI Interface 350cd/m2

General Description
1.1 Introduction
ZS050YMM-N40 is a color active matrix TFT-LCD Panel using LTPS TFT's (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 5.0 inch diagonally measured active area with FHD resolutions (1080 horizontal by 1080 vertical pixel array). Each pixel is divided into Red,Green, Blue dots which are arranged in 1pixel 2 domain and this panel can display 16.7M colors.
1.2 Features
0.2t Glass (Single)
High contrast ratio and wide viewing angle
Module Design
RoHS Compliant

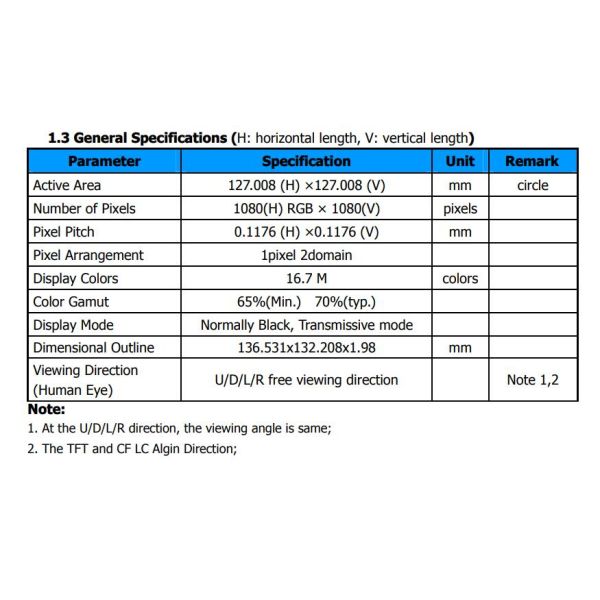

General Data

Product Name 5 inch round TFT Display
Number of Pixel 1080x1080
Interface MIPI
Luminance(cd/m2) 350cd/m2
Active area 127.008 (H) *127.008 (V)mm
LCM (W x H x D) 136.531*132.208*1.98mm
Viewing Direction(eye) ALL/IPS
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree
Drawing
5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface
5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface
Product Details
5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface5 inch 1080X1080 Round TFT Display 5'' Circular Monitor Screen With MIPI Interface
